Fully isolated trigger inputs allow connection to different circuits.
Compatible with any manufacture pump and AC or chiller system.
Controls common sea water pump for multiple AC or chiller units.
Capacity to handle up to 20 amps.
100 to 240 VAC capable at both 50 and 60Hz.
Trigger 230 pumps from 120 volt AC
Trigger 120 pumps from 230 volt AC
2,or 6 trigger inputs available.

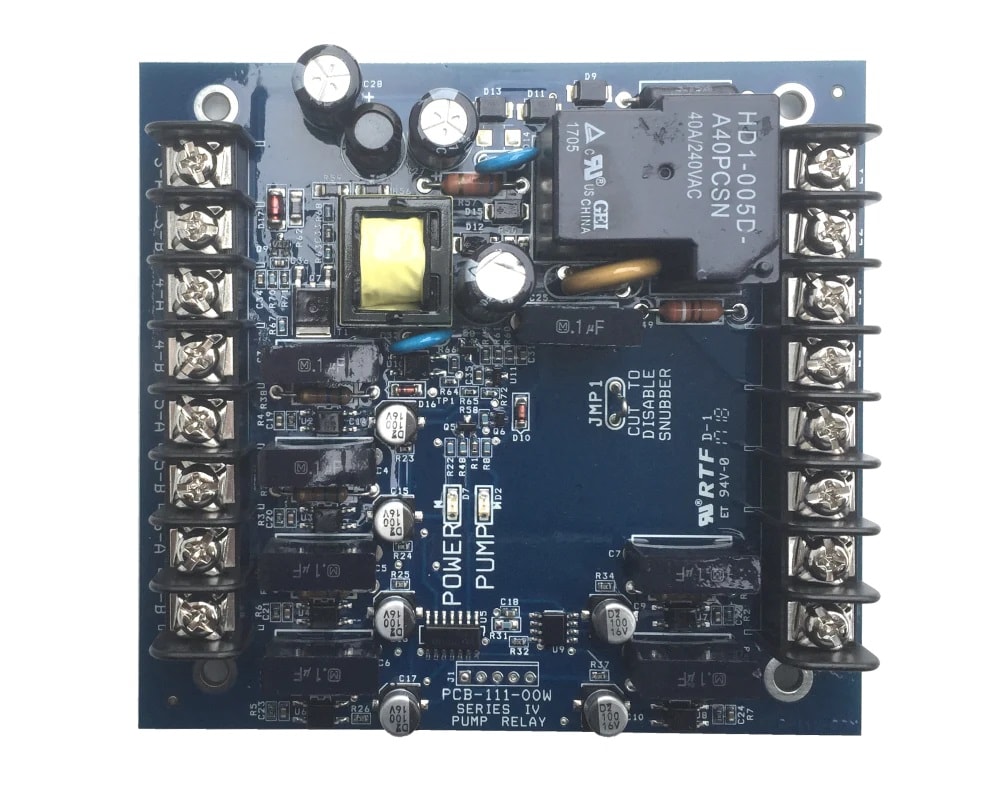

This Pump Relay (PRP) board allows control of a common seawater pump between multiple cabin or chiller controls. It can also be used to control a common chilled-water loop pump between multiple chiller controls. Separate, fully-isolated pump trigger inputs accept either 115VAC/60Hz or 230VAC/50-60Hz. The pump power source and pump output is also isolated and can be either 115VAC or 230VAC/50-60Hz.

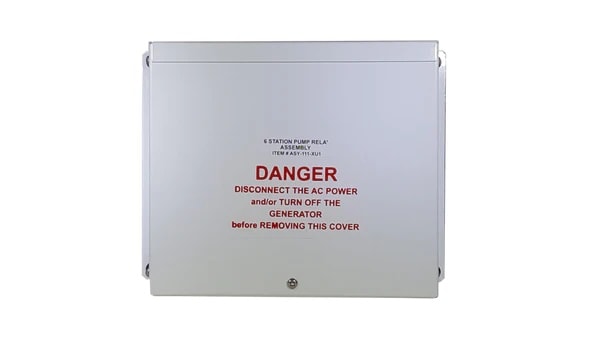

Two models of PRP are available, one that can support up to 2 trigger inputs, and one that can support up to 6. PRPs are also available enclosed in a metal electric box.
Replaces Legacy Cruisair Pump Relays
Compatible with All Cabin & Chiller Controls, Including Legacy OEM
Supports Dual Voltage using a single circuit board
