Model 620 For boats with wood or fiberglass hulls and underwater metals (Copper & it's Alloys, Stainless Steel, Lead, Etc.)to 30' LOA.
For marine aluminum hulls and structures use Model 620A
For Steel Hulls, Steel or Iron Structures use Model 620S
Automatic Impressed Current Control and Monitoring System
This impressed current cathodic protection system provides totally automatic protection and STOPS CORROSION IN ITS TRACKS!
For boats with wood or fiberglass hulls and underwater metals (Copper & it's Alloys, Stainless Steel, Lead, Etc.) to 30' LOA. Complete installation kit includes: 620 controller, two color LED display, reference cell & ceramic coated, titanium anode.
Features of the system include:
No more zinc anodes to replace
Permanent anode - never needs replacing
Totally automatic - no adjusting
Easy to read LED protection level display

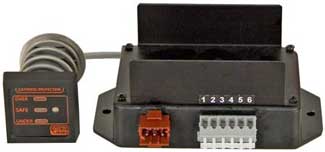

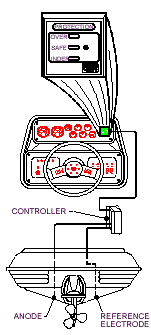

620 Installation Kits include:
Controller - Remotely mounted near the instrument panel - 5 1/8"L x 2 7/8"W x 2"H
Anode - AN-.850 ICCP Anode - Can be installed on transom or under the hull - comes with 20' of AWG 14 wire attached - 3 1/2"L x 3"W
Reference Cell - RE-104 Reference Assembly - Can be installed on transom or under hull - 2"L x 1 1/2"W
