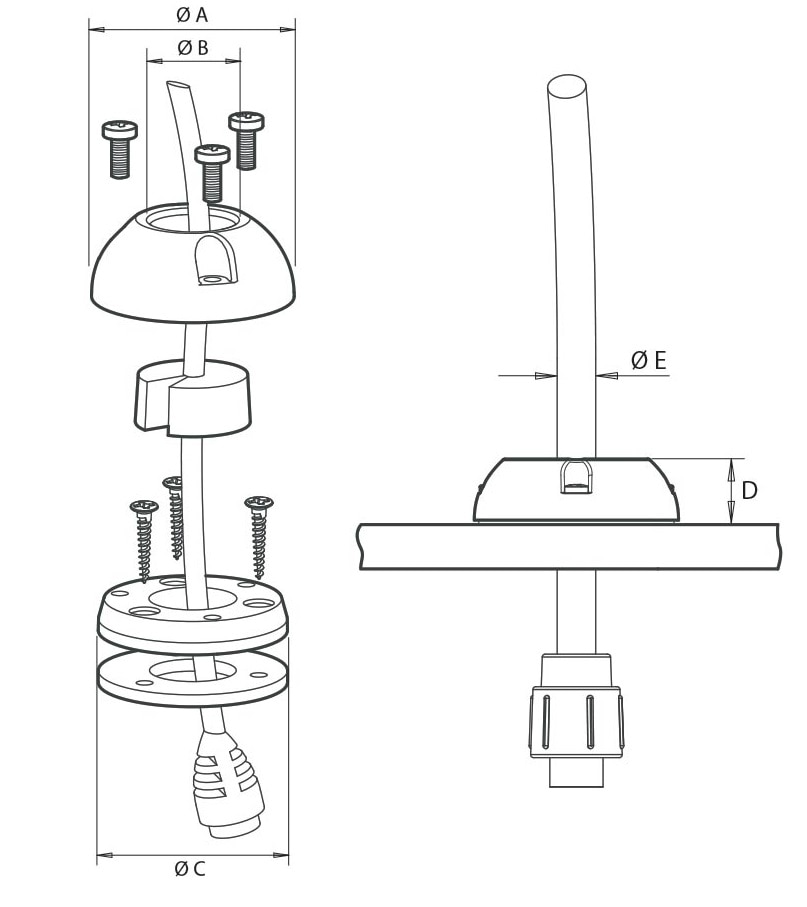

The Waterproof Deck Seal; Designed to fit cable diameters from 9mm – 14mm (0.35” – 0.55”) 30% Glass-filled Nylon – UV-stable, hard-wearing
A mm/inches
B mm/inches
C mm/inches
D mm/inches
E mm/inches
DS21B-P
49/1.93
21/0.83
45.7/1.8
20.5/0.81
9-14/0.35-0.55
For Waterproof Cable Routing The only guaranteed and proven watertight installation for your antenna and navlight cables!
The range provides waterproof cable routing and is produced in high impact plastic and 316 stainless steel.
Features: Watertight installation Tapered bung forms watertight seal. All units are supplied with a closed-cell base seal - 100% waterproof. All models have been IPX6 and IPX7 tested and approved.
Easy and Reliable Installation Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
No need to remove cable connectors Split-seal option does not require connector removal during install.
Multi-functional Dome shape Aesthetic dome-shaped profile provides a stronger, impact-resistant design (no sharp edges to hit your foot on!) and outer dome provides additional water shield.
