. Compact 2501 Classic 7.1 cf Fridge or 2.3 cf Freezer Cooling Unit
Features:
Fridge or Freezer use
12/24 V Danfoss/Secop compressor. Known for it's durability, low noise and low power consumption.
Universal kit AC/DC optional for a complete power supply compatibility (12/24 V, 230/115 V and 50/60 Hz)
Pre-charged system with quick-connect refrigerant lines

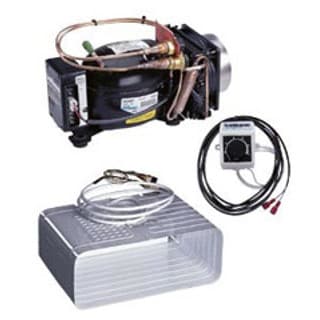

Includes: compressor, evaporator, thermostat with cable and click-on mounting bracket

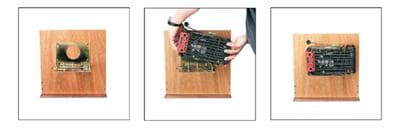

Easy installation thanks to “click-on” system
Compact Air Cooled Marine Refrigeration Systems
Isotherm Compact Air Cooled Marine Refrigeration Systems use air which is blown through the condenser by a fan as the traditional way to remove heat from a refrigerator or freezer. Air cooled systems are the most economical and easiest to install. All Isotherm Compact Systems come complete and pre-charged. Each system is rated to refrigerate or freeze a specific volume so there's no guessing for what will work best for your boat! Systems range from 2 to 21 cubic feet.
Installation is easy: simply mount the evaporator high in the box, connect the pre-charged plate and compressor, and connect power. Converting your old ice box into a modern refrigerator has never easier.
Ventilation is the key to good refrigeration: It is important that the compressor compartment is well ventilated allowing cool air to enter from below and warm air to escape at the top. Once installed, the age-old hassle of hauling ice will be over! Isotherm specializes in dependable, energy-efficient systems which are backed by the exclusive Isotherm 5-year warranty on all compressors so you'll have the confidence of knowing you have purchased the best!
Temperature Range:**
Fridge or Freezer
Max. Box Volume Fridge (Cu Ft.)
7.1 Cu Ft.
Max. Box Volume Freezer (Cu Ft.)
2.3 Cu Ft
Compressor Type:
BD50F
Evaporator Type:
Box: Large "O"
Voltage DC:
12-24 VDC
Amps Power Consumption: Max / Hourly *
3.5 / 0.9
Low Voltage Battery Protection:
Standard
Compressor Cooling Fan:
Standard
Compressor Dimensions:
12" L x 6" W x 6" H 305mm L x 153mm W x 153mm H
Evaporator Dimensions:
10.6" L x 15" W x 5.5" H 270mm L x 381mm W x 140mm H
Weight:
20 LBS 9 KG
Warranty:
5-Year limited on the compressor and 2-year on all other parts
*Power consumption figures for comparison purposes are listed as the amps consumed when running / average hourly consumption on 12 volt system with 42°F in the refrigeration space, ambient air temperature 72° F. and medium sized insulation.
** Refrigerator temperatures from mid-30's to mid-40's are proper refrigerator temperatures. Reduce the box volume by 10-20 %, in tropical conditions. Specification changes may be made without prior notice.
