Extra thick door insulation for low power consumption
Easy fit installation solutions with innovative internal mounting system
Silent, high efficient, fan cooled 12/24V Danfoss / Secop compressor (type BD35F)
Innovative vent-lock system
Ready for Isotherm Smart Energy Control
Blue LED internal lighting
Customizable door panel and handle
6 liter freezer compartment with door
Includes optional 3 sided Black Flange (proud mount)

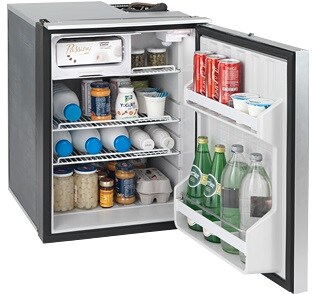

Isotherm CRUISE 85 Elegance - medium size marine refrigerators
The Isotherm Cruise 85 Elegance is a 3 cubic foot marine refrigerator (85 liters). The new Elegance design features a two-inch thick door for superior cold retention and operating efficiency. The CR85 Elegance features a 6 liter freezer compartment, two adjustable shelves with hatches which allow tall bottles to stand upright and a built-in fan-cooled Danfoss / SeCOP compressor.
Optional panels include white, and teak. Easy door swing change from right to left is shown in the video tutorials to the right.
Like all Isotherm fridges, the Cruise 85 Elegance is available in AC/DC or DC-only and covered by the exclusive 5-year limited warranty on the compressor and 2-year warranty on all other parts so you can have the confidence of knowing you're buying the best.
The Cruise Elegance line is the next generation of Isotherm Marine Refrigerators designed to increase efficiency and deliver greater performance in the marine environment.
The Isotherm Cruise Elegance line refrigerators also have an innovative internal anchoring system which eliminates the need for a mounting flange. Anchoring screws can be secured through the inside wall of the fridge for a clean, modern installation. Includes optional 3 sided Black Flange (proud mount)
Isotherm Cruise Elegance marine refrigerators are designed for easy integration of the Isotherm Smart Energy Control (ISEC) which reduces battery consumption by up to 50% under typical cruising conditions. ISEC installation instructions, panel customization, door swing instructions, and more can be found online at the Indel Webasto Marine channel on YouTube or the video turtorial page.
The new installation system allows an easy fixing of the cabinet directly from the interior of the fridge. The external flange is now optional for mounting the fridge to the cabinetry.
An innovative internal bushing structure prevents the crushing of the insulated side wall and a cap covers the anchoring screw for a clean, modern look.
With a simple slide of the invisible mechanism, CRUISE Elegance fridges can be switched to ventilation status. The door is kept open while the fridge is out of operation.
Capacity:
3.0 Cu Ft. 85 Liter
Freezer Volume:
0.14 Cu Ft. / 4 Liter
Voltage DC:
12-24 VDC
Power Consumption:
360 W/24 h*
Voltage AC:
110-220 VAC / 50-60 Hz
Low Voltage Battery Protection:
Standard
Light:
Blue LED
Compressor Cooling Fan:
Standard
Door Panel:
Black
Dimensions:
24.7" H x 18.7" W x 19.6" D ** 628mm H x 475mm W x 498mm D
5-Year limited on the compressor and 2-year on all other parts
:
Options:
Includes optional 3 sided Black Flange (proud mount)
Optional panels include white, and teak. Easy door swing change from right to left.
Isotherm Cruise Elegance marine refrigerators are designed for easy integration of the Isotherm Smart Energy Control (ISEC) which reduces battery consumption by up to 50% under typical cruising conditions
*Note: Power consumption can be reduced by up to 50 % with the use of an Isotherm Smart Energy Control Kit. Power consumption W/24 h in operation on 12 V with +5°C in the refrigeration space, ambient temperature +25°C according to the Standards ISO 15502:2005 and EN 153:2006.
Listed amperage will change with ambient temperature and unit door openings.
**Note: Depth does not include door - door is 2 inches (50mm)
