• Energy-efficient high-end compressor with 3 operating modes (Eco/Performance/Silent)
• Frameless door with Gray (Dark Silver) front panel and full width handle
• Beveled rear side for maximal utilization of space on board
• Reversible door hinge – can be fitted left or right as required
• Dual function locks can also act as vents for your fridge
• Universal Standard/flush-mount installation frame available as accessory
• 3-in-1 cooling solution: fridge, freezer or both at the same time

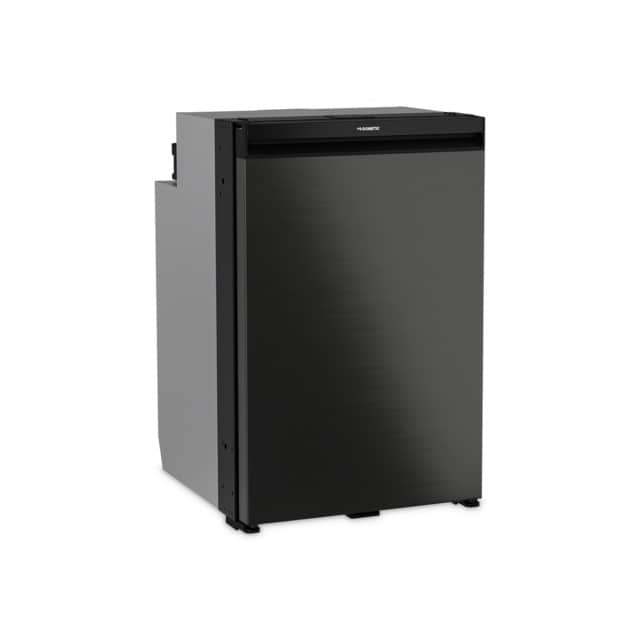

The NRX Compressor Refrigerator is the latest innovation from Dometic. The NRX delivers an energy-efficient cooling solution with the versatility to be used independently as a fridge, freezer, or both.
Three different operating modes are controlled by a very compact and powerful compressor. Eco, Performance (for quick cool-down), and Quiet can be selected from the touch control panel.

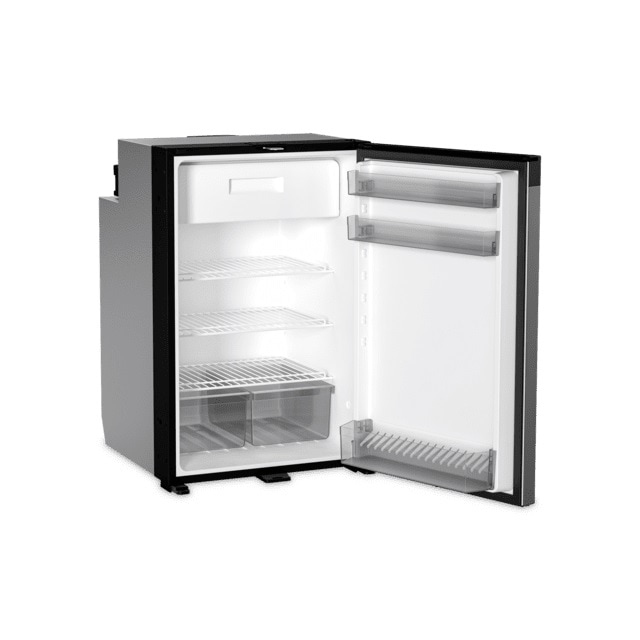

The NRX-C door incorporates a Gray (Dark Silver) panel and a convenient full-width handle. The interior includes a removable freezer compartment, multiple stainless steel shelves, two crispers, a bottle holder, and door shelves.
“Powered by our latest innovative compressor unit, the Dometic NRX Series represents a significant leap in refrigerator technology. With its sleek design and unparalleled energy efficiency, this compressor-cooled marvel sets a new standard in refrigeration.” Says Eric Fetchko, President of the Marine Segment at Dometic.
Notably, the NRX Series operates up to 25% more efficiently than its counterparts, exemplifying our commitment to sustainability and reduced energy consumption. With this advancement, Dometic aims to significantly lower energy requirements on board, contributing to an active, comfortable, and responsible life on the water.
Dometic SKU Number
9620001832
Total Storage Capacity (ltr / cf ):
126 ltr / 4.5 cf
Total Storage Capacity (ltr / cf ):
(freezer compartment removed)
130 ltr / 4.6 cf
Refrigerator Compartment ltr / cf:
118 ltr / 4.17 cf
Freezer Compartment ltr / cf:
8.2 ltr / 0.29 cf
Refrigerator Storage Temperature Range:
0°C to +12 °C (32°F to 54°F)
Freezer Compartment Storage Temperature Range:
15 °C to –5 °C (5°F to 23°F)
Freezer Mode Storage Temperature Range:
6 °C (21.2°F)
Intended Ambient Temperature Use:
+16 °C to +43 °C (60°F to 110°F)
Refrigerant
40 g
Voltage DC:
12-24 VDC
Energy Consumption KWh / 24h (at 32° C.):
0.3729
Energy Consumption Ah / h (at 32° C.) at 12V (24h period):
1.29
Noise Emission (EN60704)
40 – 45dB(A)
Overall Dimensions (H x W):
31.97 x 20.67 x 22.36 in. (812 x 526 x 568 mm)
Optional Universal Frame Dimensions (H x W x D):
32.4 x 21.2 in. (823 x 539 mm)
Weight (kg/lbs):
25 kg / 55 lb
Optional Universal Mount Flange is purchased separately.
About the Freezer Compartment:
Full-width freezer compartment with door is removable to create either a larger capacity refrigerator-only or freezer-only, with temperatures going down to 21.2°F.
About the Control Panel:
Flush-mount control panel features soft-touch temperature adjustment, on/off switch, and bright LED lamp triggered by a reliable IR sensor.

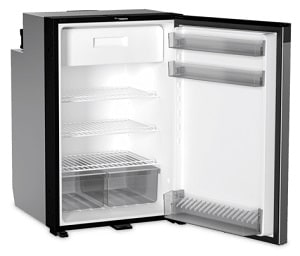

About the Interior:
Well equipped interior. Freezer, shelves, bottle holder, door tray, crispers – it’s all there!
About the Crispers:
Two Crispers are included for storing fruits and vegetables at the optimal temperature.
About the Optional Flange:
Offered as an optional extra to simplify installations, the SS316 universal mounting frame is adaptable to both Standard protruding and flush mount positions.
