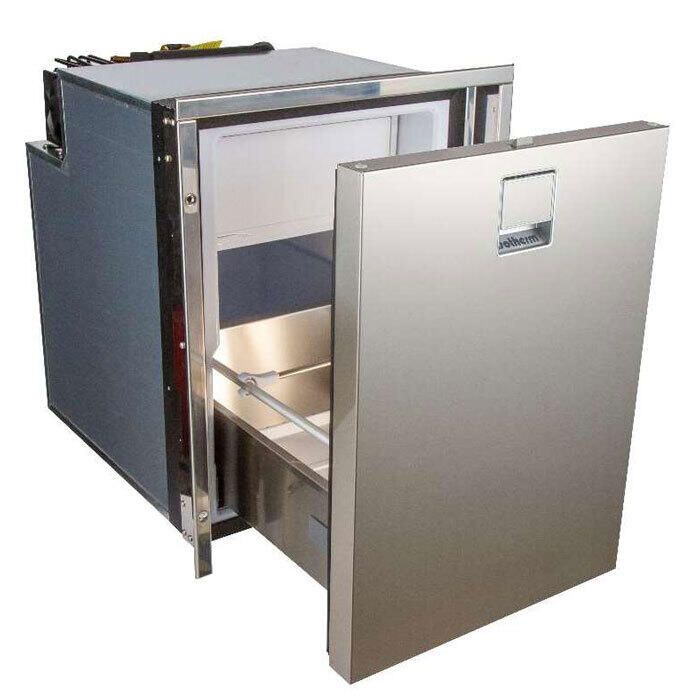

The Isotherm Drawer DR 65 INOX Clean Touch Refrigerator / Freezer - 2.3 cu. ft. features a user-friendly design, high quality materials and robust construction to ensure a long service life in the marine environment. It has a separate freezer compartment, positive latching handle and works with AC and DC power
• Improved cooling performance and reduced power consumption with the modification to the Danfoss/SeCop BD1.4F Micro Compressor variable speed compressor, the smallest and lightest DC unit on the market. • The adaptation of this new, smaller compressor system has led to an overall increase of internal volume of the units and more customer usability. • Specially-treated AISI 304 Clean Touch stainless steel door panels that results in zero fingerprints and additional resistance to UV rays, salt spray, and pitting. • Positive latching handle and lock mechanism keep drawers closed even in rough sea conditions • Integration of a new electronic thermostat which modulates the temperature, operates as the internal LED light, and will flash error codes for diagnostics purposes. • Converting to a larger evaporator plate which will allow for more freezer usability and greater cooling performance. • These products will continue to feature world-leading BLUM rail slides which provide strategic quality advantage over the competition, bracing the drawer on the sides as well as from underneath. • These units are AC/DC with the addition of a 115V/230V converter. • Both Drawer 49 & Drawer 65 Clean Touch will also be available with the custom panel option to mount your own, acrylic, fiberglass, or wood front.
All Isotherm marine refrigerator drawer sizes fit common cutouts for conventional door-style refrigerators on boats and provide a convenient and upscale way to store food and beverages. Like all Isotherm products, the Drawer models are backed by the exclusive Isotherm 5-year limited warranty on all compressors and two years on all parts.
Capacity:
2.3 Cu Ft. 65 Liter
Voltage DC:
12-24 VDC
Power Consumption:
360 W/24 h*
Voltage AC:
110-220 VAC / 50-60 Hz
Low Voltage Battery Protection:
Standard
Light:
Standard
Compressor Cooling Fan:
Standard
Door Panel:
Stainless
Dimensions (cut out):
21" H x 18.5" W x 20.75" D 533.5mm H x 469mm W x 526.5mm D
5-Year limited on the compressor and 2-year on all other parts
*Note: Power consumption W/24 h in operation on 12 V with +5°C in the refrigeration space, ambient temperature +25°C according to the Standards ISO 15502:2005 and EN 153:2006.
Listed amperage will change with ambient temperature and unit door openings.
