Cooling unit may be mounted up to 4 feet away. Cooling unit is connected permanently (no quick disconnects) to freezer box via soft copper refrigeration tubing. Care must be taken during installation to not kink the refrigerant lines.
Volume
Total Volume (Cu Ft)
3.8 Cu. Ft.
Weight
Lbs
78 lbs.
Technical features (dc)
Power Voltage (V)
12/24 Vdc
Rated current (A)
4.34 A @ 12 Vdc
Nominal input (W)
52 W
Technical features (ac)
Power Voltage (V)
115/240 Vac 60/50 Hz
Rated current (A)
0.64 A @ 115 Vac
Nominal input (W)
52 W
Cooling Unit
External cooling unit
standard
Door Direction
Reversable door RH Standard
standard
Door Gasket
Magnetic Closure
standard
Door finish
Interchangeable Door Gloss Black
standard
Opening type
Front opening
standard
Mounting options
Adjustable Flange for Surface or Flush Mounting
standard

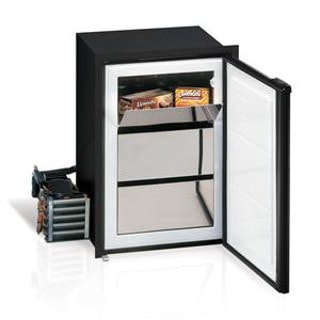

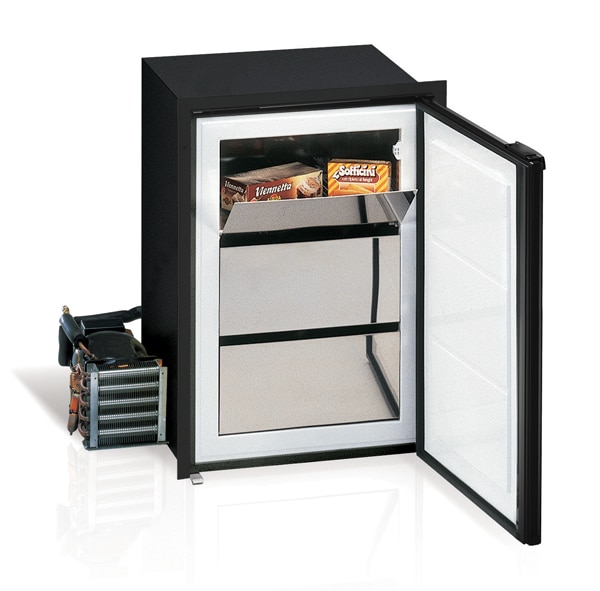

Sea Classic freezers with remote cooling units provide bigger internal volume, remote installation of the cooling unit in a compartment or locker, optimizing space and performance. Ventilation to the unit is required.

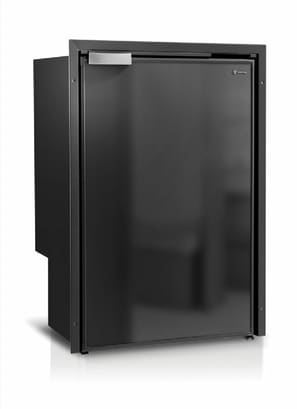

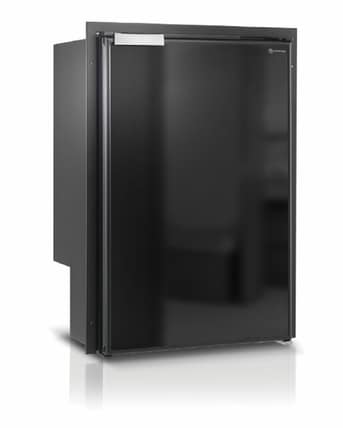

Example: Flush Flange Position vs. Surface Flange Position

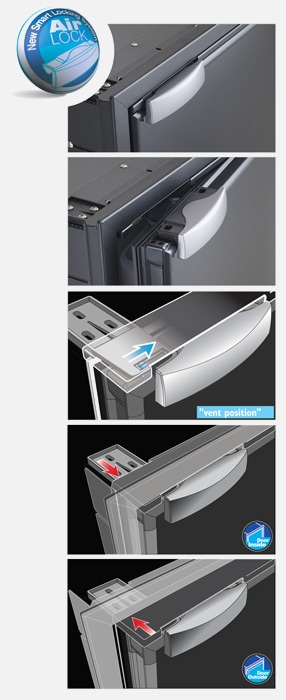

New "SMART" locking system for the SeaClassic series
The new Airlock closure system has beendesigned to allow an easier access for the end user and integrate different features in order to offer an innovative product, extremely user-friendly.
Airlock: 4 innovative solutions
Positive door closure, to prevent unwanted openings.
Unique Double purpose mounting flange, for both door inside and door outside installation.
Fast reversible opening: thanks to its smart design, it’s now extremely quck and easy to operate.
Integrated "vent position" system, to keep the fridge door ajar, preventing the formation of unpleasant odours and mould when not in use.
. Full and Quick
Customization
Matching the interior design is fast & easy. The look of your fridge with a simple change will be in harmony with the style of your furnishing.

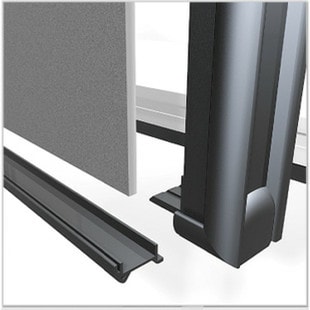

Thanks to the new frames, door customization is now fast and easy.
Comfort and safety are, once more, an indispensable combination.
.
Highest insulation & sound level
The newest materials and applications provide an increase in the refrigerators insulation values without affecting dimensions.
Vitrifrigo uses, in its products, only certified compressors which pass the highest quality sound test levels.
