Cooling unit may be mounted up to 4 feet away. Cooling unit is connected permanently (no quick disconnects) to freezer box via soft copper refrigeration tubing. Care must be taken during installation to not kink the refrigerant lines.
Volume
Total Volume (Cu Ft)
3.8 Cu. Ft.
Weight
Lbs
78 lbs.
Technical features (dc)
Power Voltage (V)
12/24 Vdc
Rated current (A)
4.34 A @ 12 Vdc
Nominal input (W)
52 W
Technical features (ac)
Power Voltage (V)
115/240 Vac
60/50 Hz
Rated current (A)
0.64 A @ 115 Vac
Nominal input (W)
52 W
Cooling Unit
External cooling unit
standard
Door Direction
Reversable door RH Standard
standard
Door Gasket
Magnetic Closure
standard
Door finish
Interchangeable Door
Gloss Black
standard
Opening type
Front opening
standard
Mounting options
Adjustable Flange
for Surface or Flush Mounting
standard
Sea Classic freezers with remote cooling units provide bigger internal volume, remote installation of the cooling unit in a compartment or locker, optimizing space and performance. Ventilation to the unit is required.

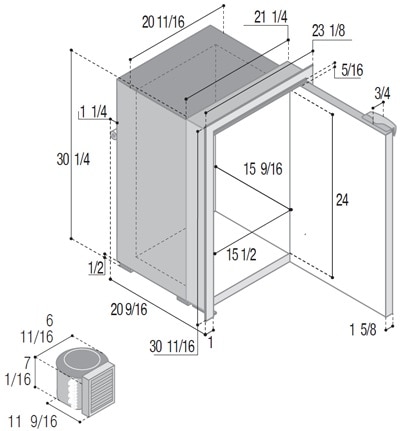

Example: Flush Flange Position vs. Surface Flange Position

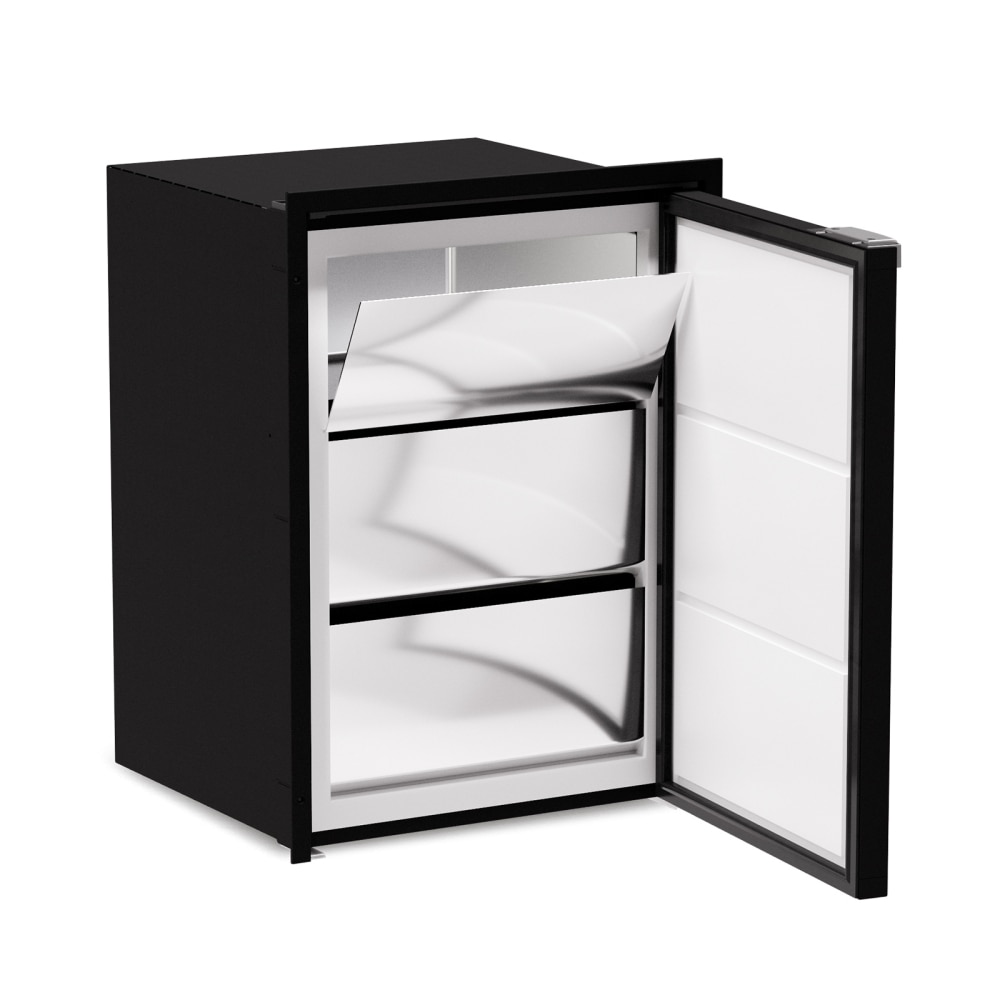

Freezer, C110BT CHR, Black, Vitrifrigo
The C110BT CHR freezer from the Freezer series represents an ideal solution, boating a total capacity of 3.8 CU. Ft. The refrigeration unit is positioned externally.
Among its key features, you'll find the panelable black door with a snap-lock closure, designed to prevent accidental openings.
Additionally, the door features an innovative "vent position" system integrated into the handle, allowing for partial opening during periods of inactivity. This function not only prevents the formation of mold and unwanted odors but also contributes to better food preservation.
Positive door closure, to prevent unwanted openings.
Unique Double purpose mounting flange, for both door inside and door outside installation.
Fast reversible opening: thanks to its smart design, it’s now extremely quck and easy to operate.
Integrated "vent position" system, to keep the fridge door ajar, preventing the formation of unpleasant odours and mould when not in use.
.
Full and Quick
Customization
Matching the interior design is fast & easy. The look of your fridge with a simple change will be in harmony with the style of your furnishing.
Thanks to the new frames, door customization is now fast and easy.
Comfort and safety are, once more, an indispensable combination.
.
Highest insulation & sound level
The newest materials and applications provide an increase in the refrigerators insulation values without affecting dimensions.
Vitrifrigo uses, in its products, only certified compressors which pass the highest quality sound test levels.
