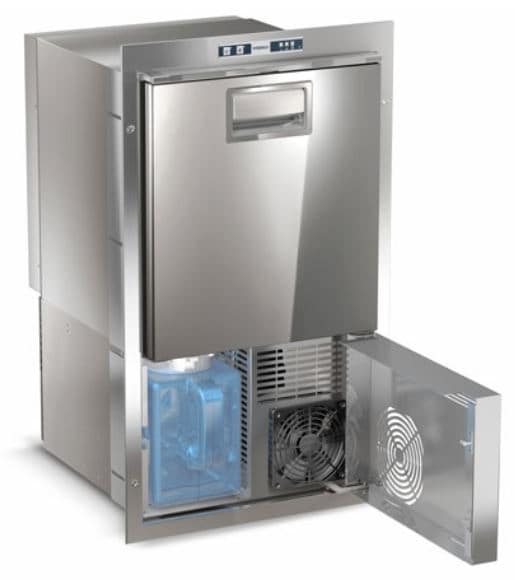

        Vitrifrigo IMREFIXN1X Ice Maker IM-CL Refill OCX2 Adjustable Flange 115 V



        Vitrifrigo IMREFIXN1X Ice Maker IM-CL Refill OCX2 Adjustable Flange 115 V

        Create an account to see YOUR pricing {Click Here}

        Quantity Pricing
        SKU: IMREFIXN1X-INT

        Price: $2,364.72

        $2,364.72
        Our Price: $1,913.44

        1
        Stock Availability:

        Select Options:


        Add to Wish List Please, login and add to Wish List.


        Or:

        Go to Wish List



         IMREFIXN1X     OCX2

        STAINLESS STEEL ICE MAKERS
        THE NEW SERIES OCX2

        These new ice makers stand out with the new style of latches and the same curved centrally located handles that match the new Vitrifrigo DWR series units.  The Steelock latch also includes the same vent position and adjustable mounting flanges as the DRW drawers offer.  A feature totally unique to this new series is a new digital control system which provides the option of turning off the ice production, then removing the ice storage tray making the unit into an auxiliary freezer with temperature control.







        StyleClassic Hydro Ice Maker
        VolumeTotal Volume (Cu Ft) 0.8 Cu. Ft.
        WeightLbs 57.3 lbs.
        Ice ProductionLbs per 24 Hr 22
        Technical features (ac)Power Voltage (V) 115 Vac 60Hz
         Rated current (A) 2.32 A @ 115 Vac
         Nominal input (W) 168 W
        Cooling UnitInternal cooling unit standard
        Door GasketMagnetic Closure standard
        Door finishStainless Steel Wrapped Door standard
        Opening typeFront opening standard
        Mounting optionsSurface Mounting Flange standard


        Flush Flange Built-in

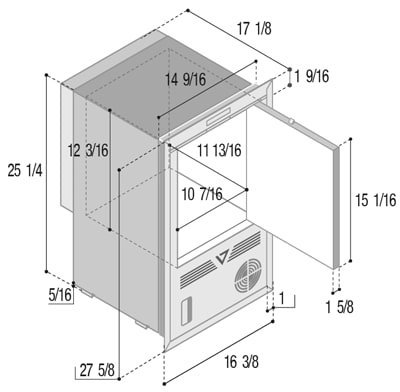

        Cut Out Dimensions
        a: 17-1/8"
        b: 14-9/16"
        c: 25-1/4"
        Surface Flange Built-in
        Cut Out Dimensions
        a: 15-3/4"
        b: 14-9/16"
        c: 25-1/4"

        Example: Flush Flange Position vs. Surface Flange Position


        Flange measures 16-3/8" W x 27-5/8" H Outside Dimensions

        The REFILL is fitted with its own internal water reservoir and makes up to 22 pounds of crescent ice cubes per day.

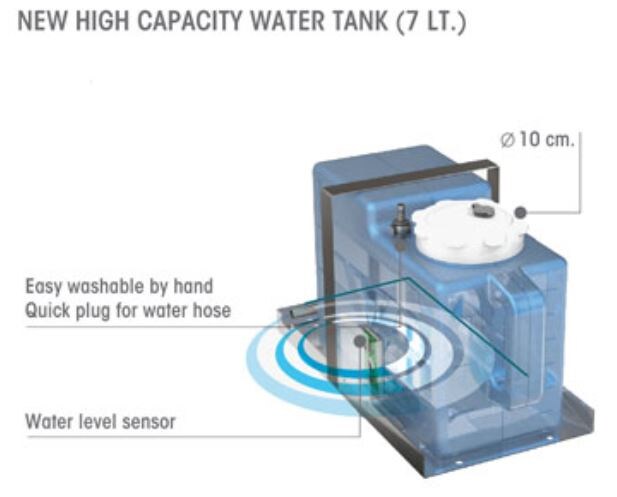

        NEW WATER TANK
        The new tank designed to facilitate extraction,
        filling and washing




        Safe Water

        The new IM series are equipped with an UV-C LED disinfection system


        Precise
        Temperature control
        .
        .

        New multifunction waterproof IP54 LED thermostat





        Ice Maker

        Equipped with an internal ice maker which produces trays of ice cubes in the classic 'crescent moon' shape, which allows a better ice production and use.This shape prevents the ice cubes from attaching one another.





        Highest insulation & sound level

        The newest materials and applications provide an increase in the refrigerators insulation values without affecting dimensions.

        Vitrifrigo uses, in its products, only certified compressors which pass the highest quality sound test levels.
