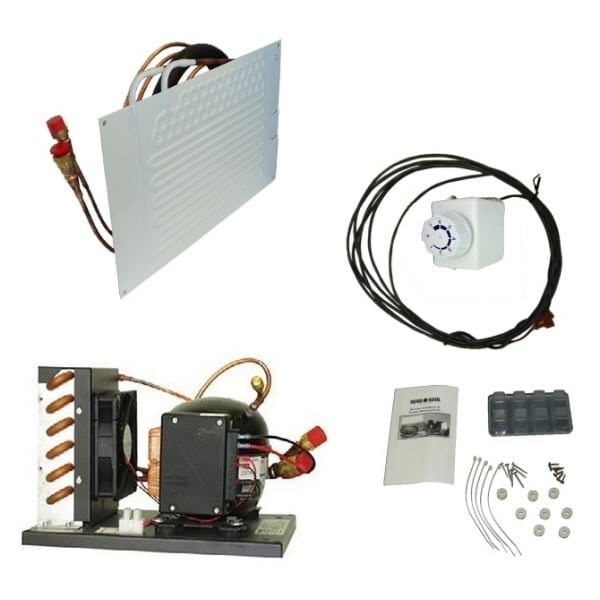

w/ 16" x 10" Plate Suits refrigerator applications up to 4 cf (113 l) or freezer applications up to 2 cf (56 l)
Variable speed compressor
Reusable couplings between unit and cooling plates
High efficiency air cooled condenser for high ambient applications
Pre-charged with R134a refrigerant, 12-24 volt DC
Standard line set is 12ft (3.66M) optional 18ft (5.48M)
Compressor:
DanFoss BD35
Refrigerant:
R134a
Voltage:
12/24 Volt DC
Amperage @ 12 VDC:
2.2 Amps Running*
Low Voltage Battery Protection:
Standard
Compressor Cooling Fan:
Standard
Compressor Dimensions:
7.5" H x 11" W x 9" L 190mm H x 279mm W x 229mm L
Plate Dimensions:
16" x 10"
Plate Surface Area:
176 sq. inch (.114 sq. meter)
Lineset:
12 Ft (3.66M) Foot Standard
Max Box Size**:
4 cf (113 l)
Reusable couplings***:
Standard
Thermostat Assembly:
Included
Speed Resistors:
Included
Installation Guide:
Included
Mounting Hardware:
Included
Ice Cube Tray:
Included
Weight:
24 LBS 10.88 KG
Warranty:
2 Year
Options:
Optional 18 Ft (5.48M) Lineset
AC/DC Control Module
LT211 Cooling Unit
*Note: The amperage listed is while the unit is running.
The new Danfoss BD series compressors are speed variable so you can match compressor output to your cooling requirements. The LT201 systems will draw 2.2 amps @ 12 volts while running at their slowest speed and at their highest speed setting they can draw up to 3.8 amps. The compressor will cycle on and off as the thermostat reaches it’s set points.
The control module is field adjustable and allows the compressor to run at variable speeds. Changing the control resistor from 0 to 1500 ohms, or any resistance in between, will change the speed of the compressor which increases or decreases the capacity of the system.
No resistor is slow speed, 2.2 amps @ 12 Volt DC for a small cooler (1.1 amps @ 24 Volt DC)
500 ohm resistor is medium speed and draws 3.2 amps @ 12 Volt DC for a larger cooler (1.6 amps @ 24 Volt DC)
1500 ohm resistor is high speed and draws 3.8 amps @ 12 Volt DC for larger freezers or coolers (1.9 amps @ 24 Volt DC)
When the compressor is running the LT201 will draw between 2.1 and 3.8 amps at 12 volts DC (1.1 to 1.9 amps @ 24VDC) depending on which resistor is used. The compressor will cycle on and off as the operating temperature is reached so overall power useable can be as little as around 25 amps per day for a small well insulated fridge up to a maximum of around 90 amps per day for a very large, poorly insulated freezer.
To determine 24hr consumption; calculate the run time for 24hrs and multiply this by the listed amperage.
Listed amperage will change with size of box, load of box, ambient temperature and unit door openings.
**Note: Max box size with 4" of foam insulation for refrigeration (50% less for freezer).
***Note: Parker refrigerant couplings: these couplings are re-sealable. When they are connected they allow the refrigerant to flow through the system. When they are disconnected they are leak free and keep the refrigerant in the two disconnected halves, the plates and the compressor unit. Nova Kool uses this style of coupling as they run test all units overnight before disconnecting and shipping to their customers.
