R4503DC "Chine Hugger"
Capacity:	4.3 Cu Ft.  122 Liter
Freezer Volume:	0.6 Cu Ft.  /  17 Liter
Voltage DC:	12-24 VDC
Amperage @ 12 VDC:	4.4/2.2 Amps Running*
Low Voltage Battery Protection:	Standard
Light:	Standard
Compressor Cooling Fan:	Standard
Door Panel:	Black
Cut Out Dimensions:	28.375" H x 20.25" W x 27" D (See Note)**  721mm H x 514mm W x 686 mm D (See Note)**
Flange Dimensions:	29.250" H x 21.125" W  745mm H x 536mm H
Door Panel Dimensions:	28" H x 19.625" W  712mm H x 499mm W
Weight:	59 LBS  27 KG
Warranty:	2 Year
:
Options:
	Optional Flat Cooling Plate  - All refrigerator - No Freezer

Hinges on RIGHT (as you face the refrigerator) STANDARD.  Hinges on LEFT available by request.

*Note: The amperage listed is while the unit is running.
To determine 24hr consumption; calculate the run time for 24hrs and multiply this by the listed amperage.
Listed amperage will change with ambient temperature and unit door openings.

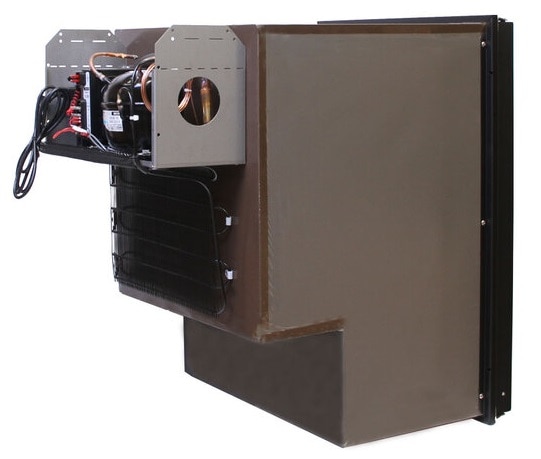

**Note: The Chine Hugger model is designed to fit the curve of the hull.  To maximize the size of the refrigerator, the cooling unit is mounted at the back/top of the refrigerator.
The depth measurement can be broken down into three areas Top, Middle, and Bottom as follows:

Cut Out Depth Model R4503 "Chine Hugger"
Model	Depth
R4503 Top:	Angle from 20" to 27"   508mm to 686mm
R4503 Middle:	20"  508mm
R4503 Bottom:	13"  330mm
