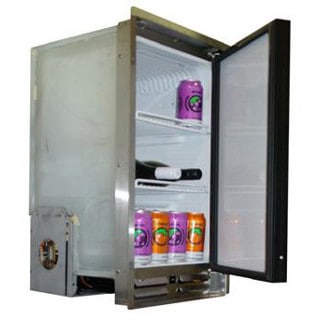

Designed to replace some common Ice Maker cut outs. The R1200 unit will hold wine bottles as well as cans of beverage.
The 1200 does not have a freezer compartment; this allows more room for beverages.

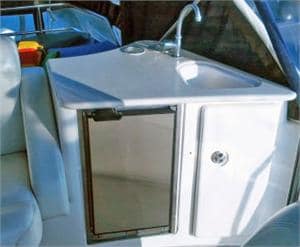

The mounting flange can be moved to allow for shallow cut outs or left as a flush door, as shown.
Capacity:
1.2 Cu Ft. 34 Liter
Voltage DC:
12-24 VDC
Amperage @ 12 VDC:
2.2/1.1 Amps Running*
Voltage AC:
110-220 VAC / 50-60 Hz
Low Voltage Battery Protection:
Standard
Light:
N/A
Compressor Cooling Fan:
Standard
Door Panel:
Stainless Steel
Cut Out Dimensions:
24.75" H x 14" W x 14.5 to 16" D (Moveable Flange**) 628mm H x 355mm W x 368 to 406mm D
Flange Dimensions:
25.5" H x 15.125" W 648mm H x 384mm H
Door Panel Dimensions:
25.5" H x 15.125" W 540mm H x 320mm W
Weight:
37 LBS 17 KG
Warranty:
2 Year
Hinges on RIGHT (as you face the refrigerator) STANDARD. Hinges on LEFT available by request.
*Note: The amperage listed is while the unit is running. To determine 24hr consumption; calculate the run time for 24hrs and multiply this by the listed amperage. Listed amperage will change with ambient temperature and unit door openings.
