STAINLESS STEEL REFRIGERATORS-FREEZERS THE NEW SERIES OCX2
The Stainless Steel Series has been completely updated in both design and function. The stylish new square edge door design with the Steelock positive latch handle has the added functionality of a vent position for air circulation during periods of non-use preventing mould or bad odours in the fridge. The single section, stainless steel fitting frame allows the fridge to be securely fixed either with the door flush or proud of your furniture and has integrated vent slots to improve air flow and the efficiency of the cooling unit behind.
Volume
Total Volume (Cu Ft)
1.4 Cu. Ft.
Freezer Compartment (Cu Ft)
0.1 Cu. Ft.
Weight
Lbs
35.3 lbs.
Technical features (dc)
Power Voltage (V)
12/24 Vdc
Rated current (A)
2.58 A @ 12 Vdc
Nominal input (W)
31 W
Technical features (ac)
Power Voltage (V)
115/240 Vac 60/50 Hz
Rated current (A)
0.27 A @ 115 Vac
Nominal input (W)
31 W
Cooling Unit
External cooling unit
standard
Light
L.E.D.
standard
Door Direction
Reversable door RH Standard
standard
Door Gasket
Magnetic Closure
standard
Door finish
Stainless Steel Wrapped Door
standard
Opening type
Front opening
standard
Mounting options
Flush Mounting Flange
standard
Sea Classic refrigerators with remote cooling units provide bigger internal volume, remote installation of the cooling unit in a compartment or locker, optimizing space and performance. Ventilation to the unit is required.
Cooling unit may be mounted up to 5 feet away. Cooling unit is connected permanently (no quick disconnects) to refrigerator box via soft copper refrigeration tubing. Care must be taken during installation to not kink the refrigerant lines.

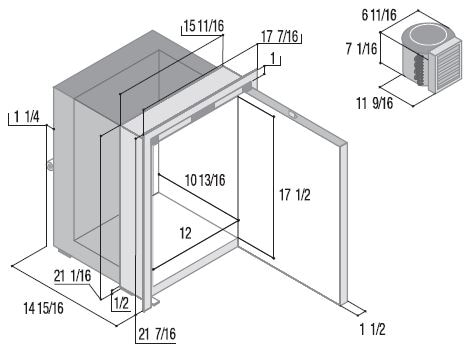

Example: Flush Flange Position vs. Surface Flange Position
Design & Functionality
Includes the “Steelock” door handle, whose accurate and elegant design matches with a perfect functionality. Moreover, the particular brushed stainless steel finish creates and elegant match with the satin stainless steel door
Full & Quick Customization . Matching the interior design is fast & easy. The look of your fridge with a simple change will be in harmony with the style of your furnishing.
Thanks to the new frames, door customization is now fast and easy.
Comfort and safety are, once more, an indispensable combination.
Freshness has a new light
All models with an internal light have a new LED system. High brightness gives the best internal visibility and the lowest energy consumption.
Highest insulation & sound level
The newest materials and applications provide an increase in the refrigerators insulation values without affecting dimensions.
Vitrifrigo uses, in its products, only certified compressors which pass the highest quality sound test levels.
