Bronze Pipe Fittings

Our no lead cast fittings are bismuth bronze. They follow the ASTM alloy listings / standard: ASTM B584 C89833

C89833*Copper Bismuth AlloyCast BRASSES Copper-Bismuth and Copper-Bismuth-Selenium AlloysTrueTrue

Chemical Composition
	Element
	Cu⁽¹⁾	Pb	Sn	Zn	Fe	P	Ni⁽²⁾	Al	Bi	S	Sb	Si
(1) Cu + Sum of Named Elements 99.3% min. (2) Ni value includes Co.
Min (%)	86.0		4.0	2.0					1.7
Max (%)	91.0	0.09	6.0	6.0	0.30	0.050	1.0	0.005	2.7	0.08	0.25	0.005

Mechanical Properties*
Form	Temper	Temper Code	Tensile Strength (ksi)	YS-0.5% Ext (ksi)	Elongation (%)	Brinell Hardness, 500 kg load	Izod (ft-lbs)
As Sand Cast	As Sand Cast	M01	37 Typ	17 Typ	28 Typ	60 Typ	12 Typ
* Measured at room temperature, 68°F (20°C).

Bismuth bronze. Bismuth bronze or bismuth brass is a copper alloy which typically contains 1-3% bismuth by weight, although some alloys contain over 6% Bi. This bronze alloy is very corrosion-resistant, a property which makes it suitable for use in environments such as the ocean.

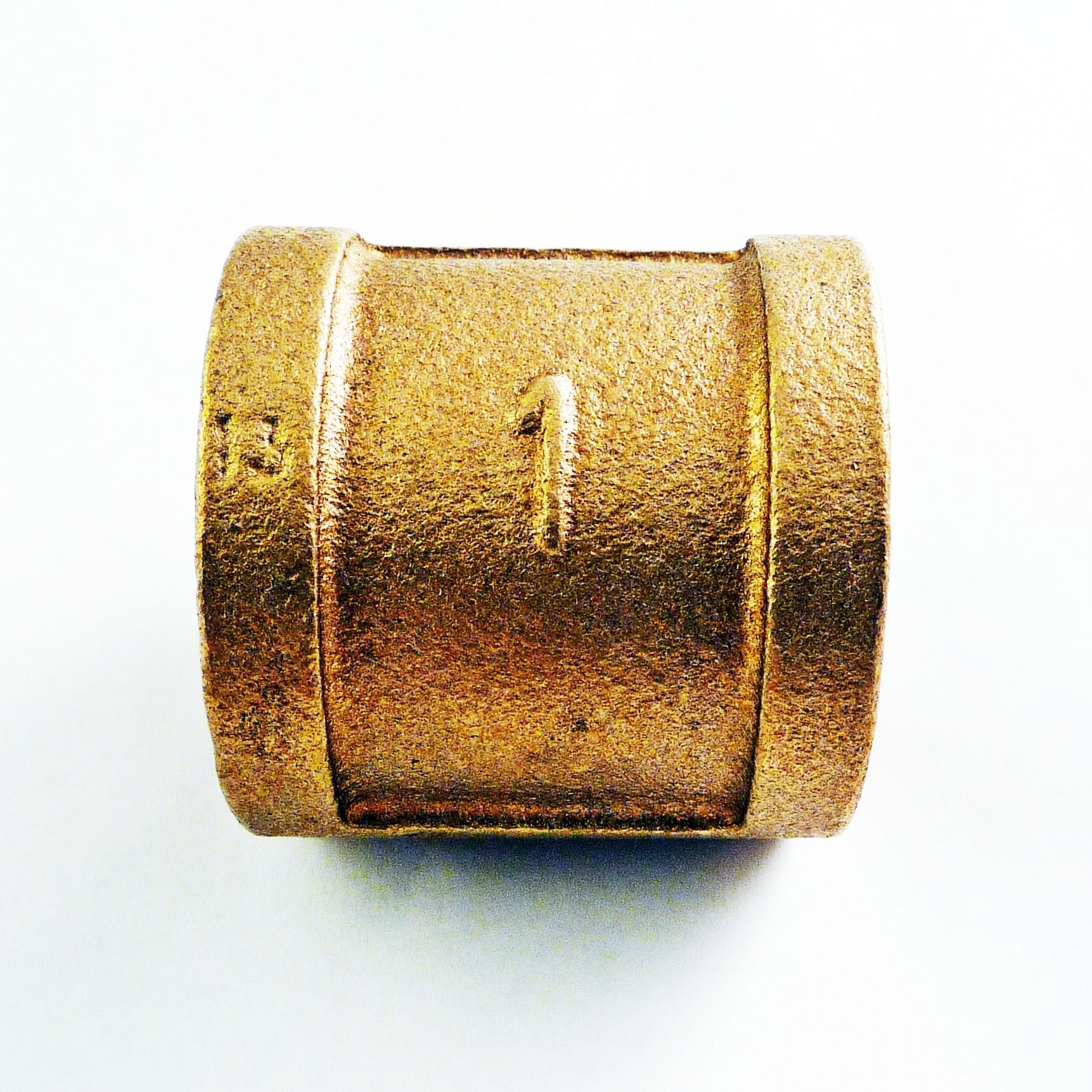

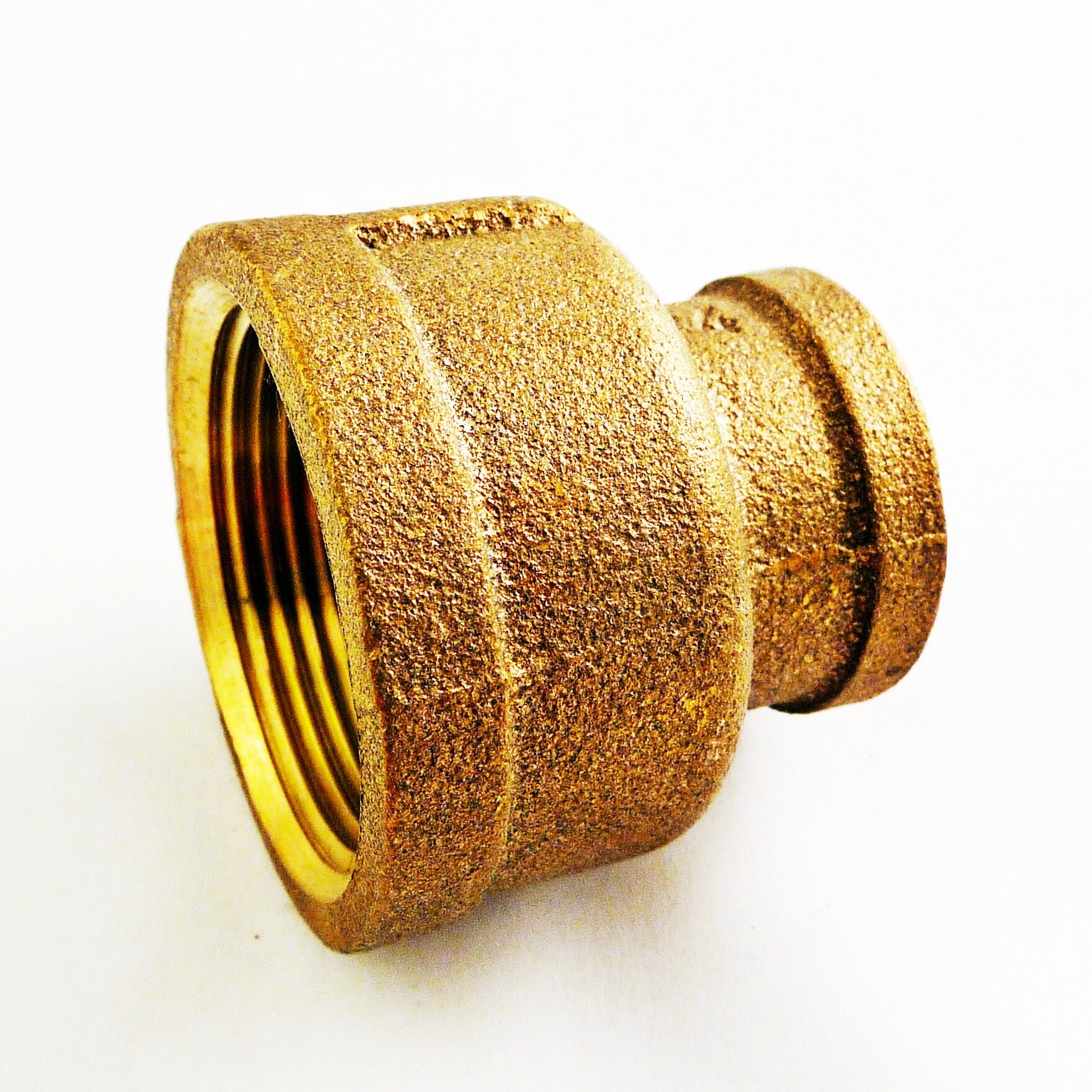

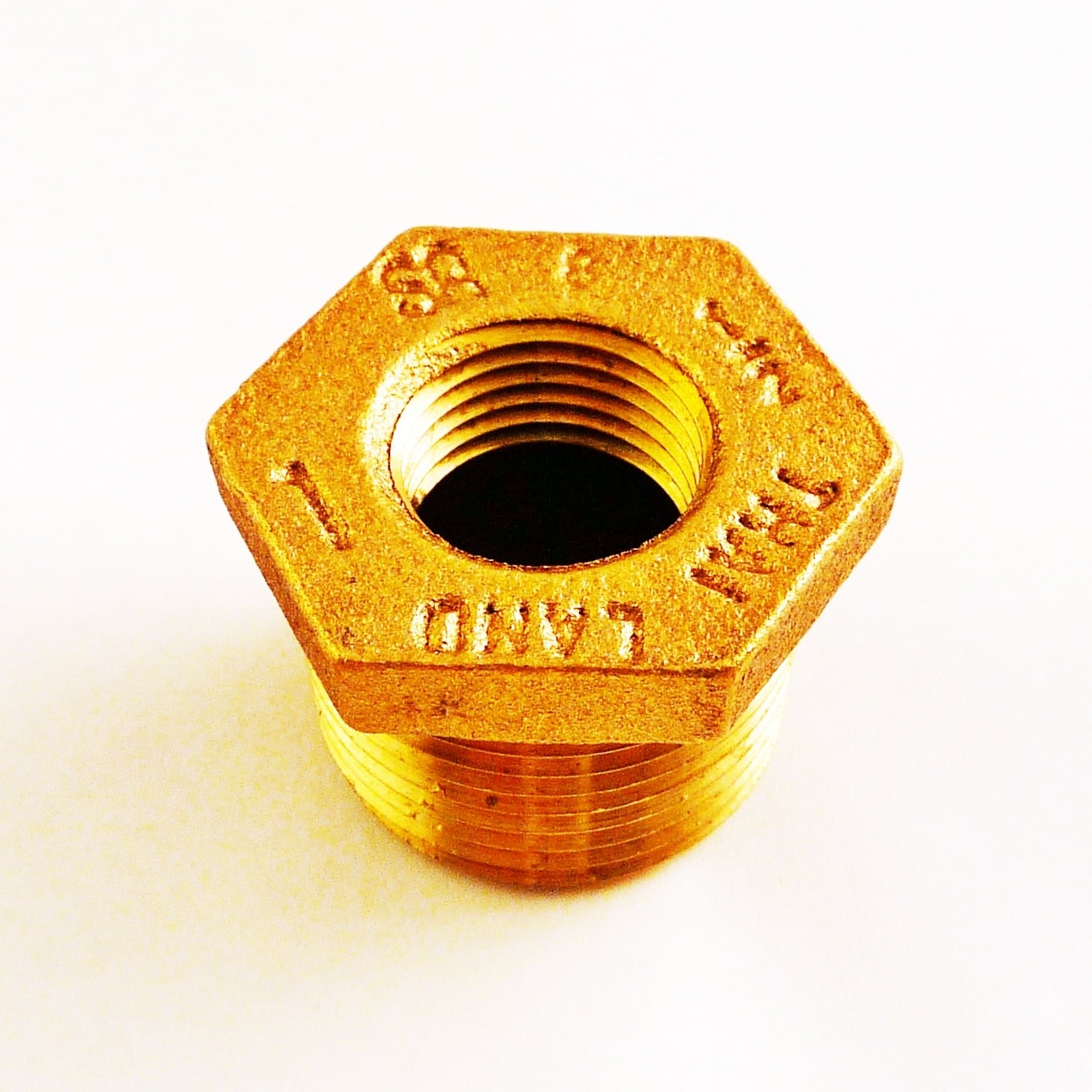

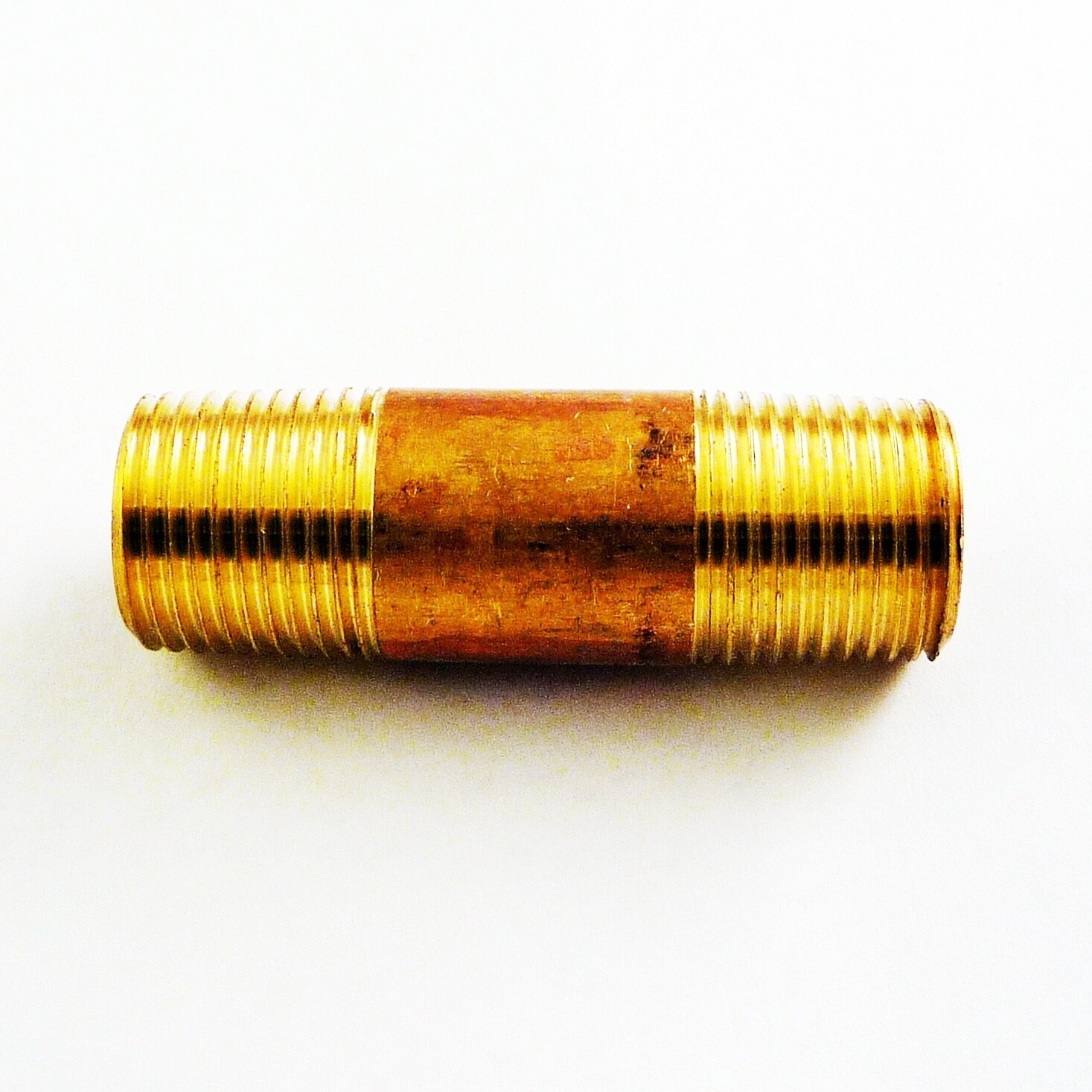

NPT Red Brass Pipe Nipples	NPT Bronze Female Pipe Couplings	NPT Bronze Hex Bushings	NPT Bronze Bell Reducers

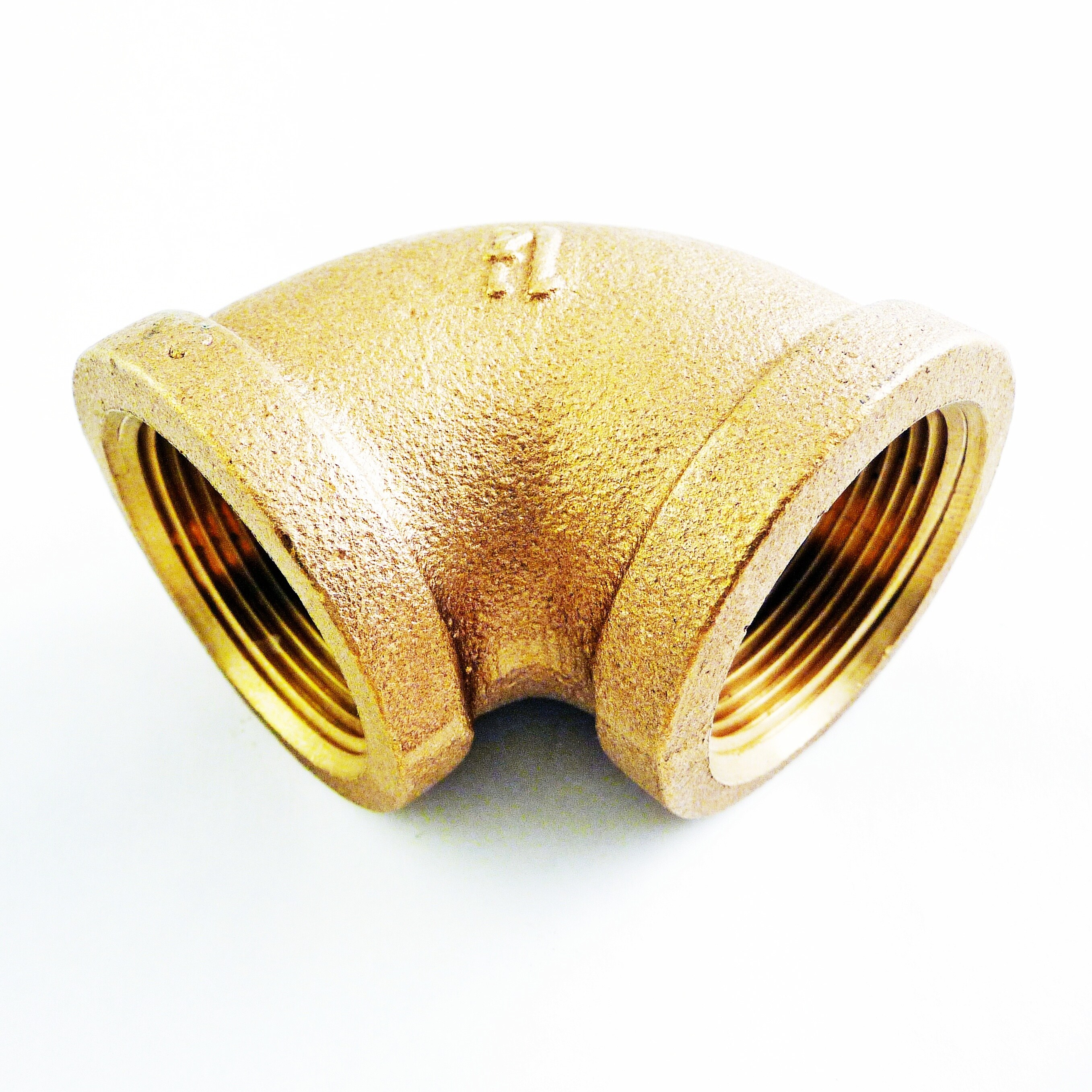

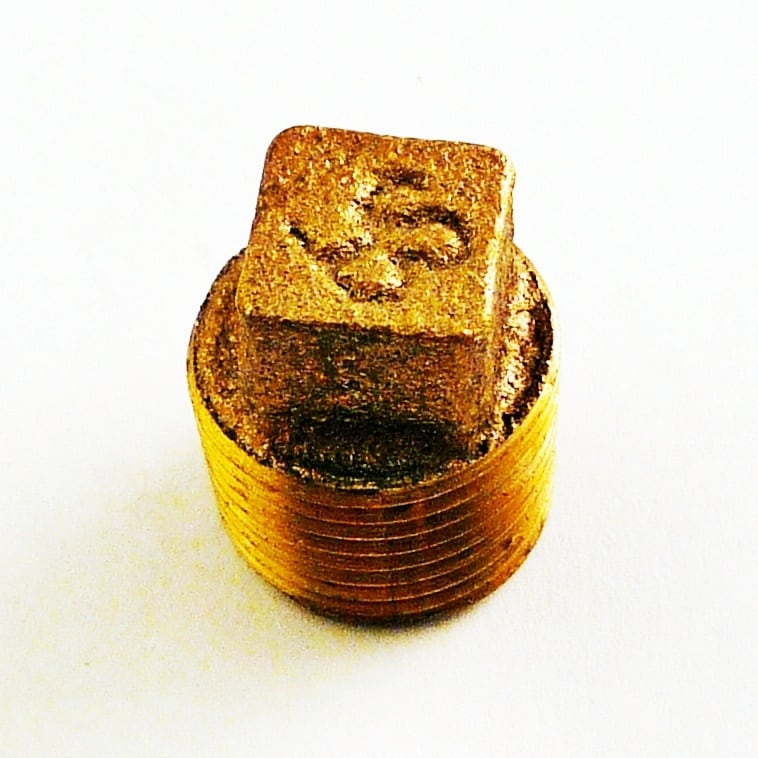

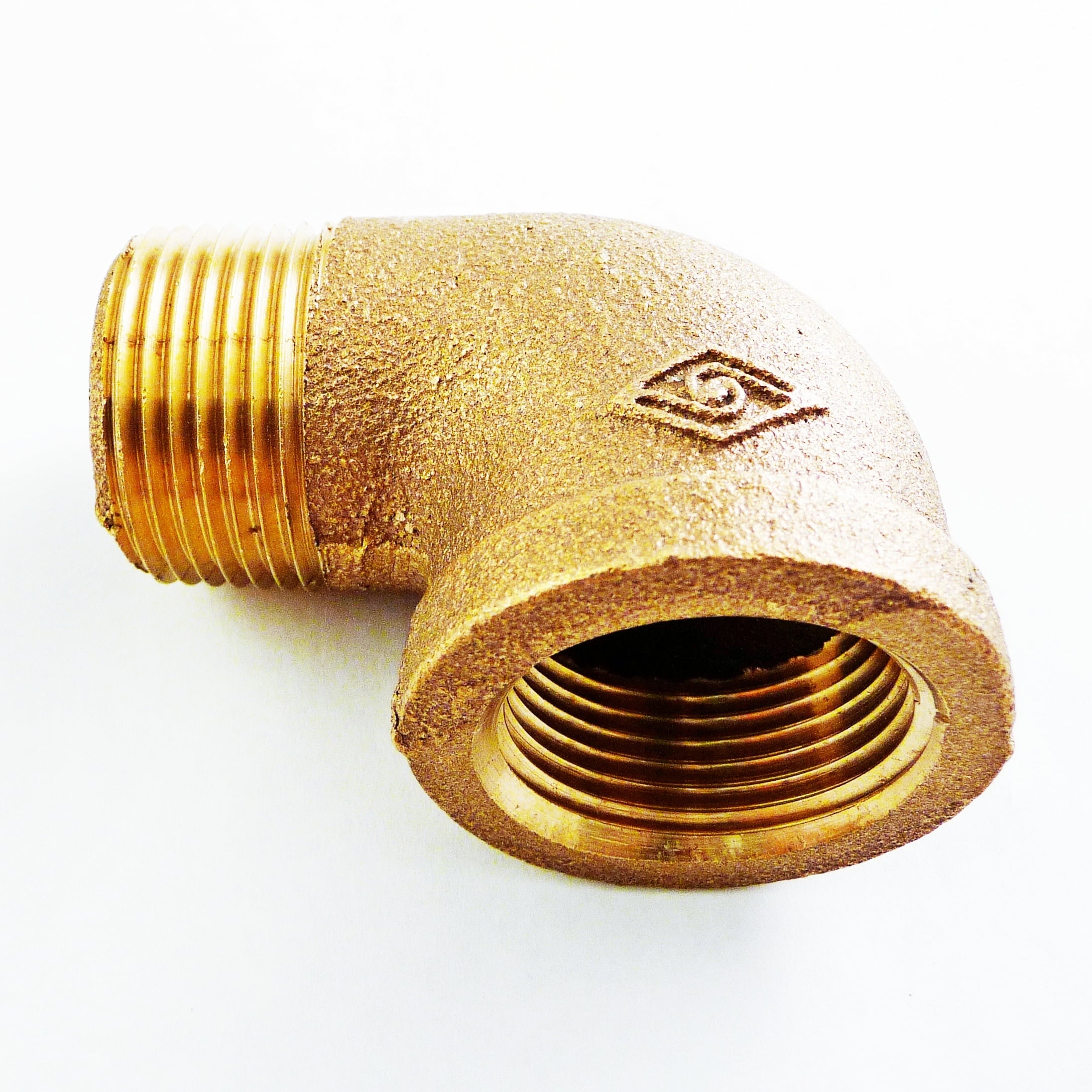

NPT Bronze Pipe Caps	NPT Bronze Square Head Pipe Plugs	NPT Bronze Pipe Elbows	NPT Bronze Pipe Street Elbows

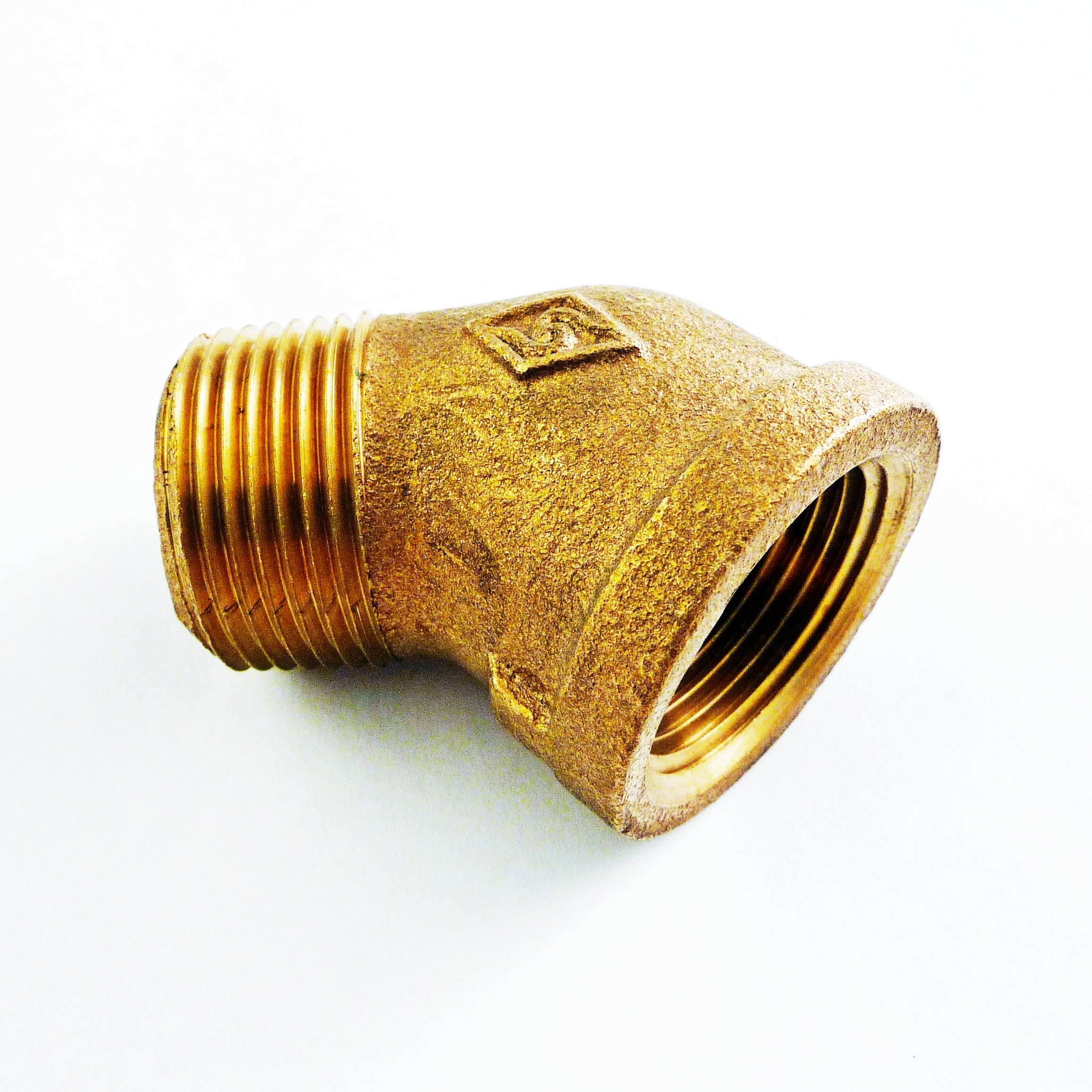

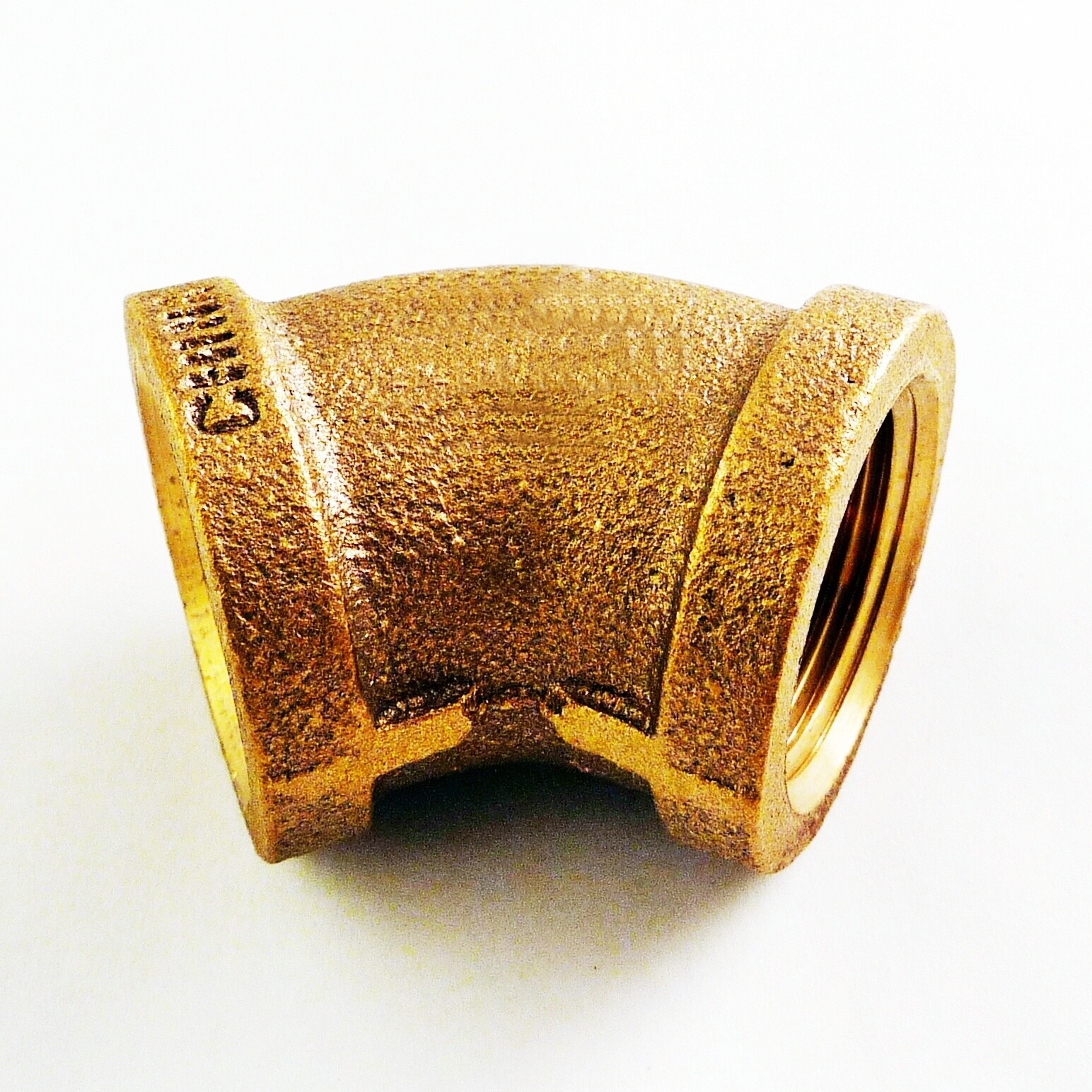

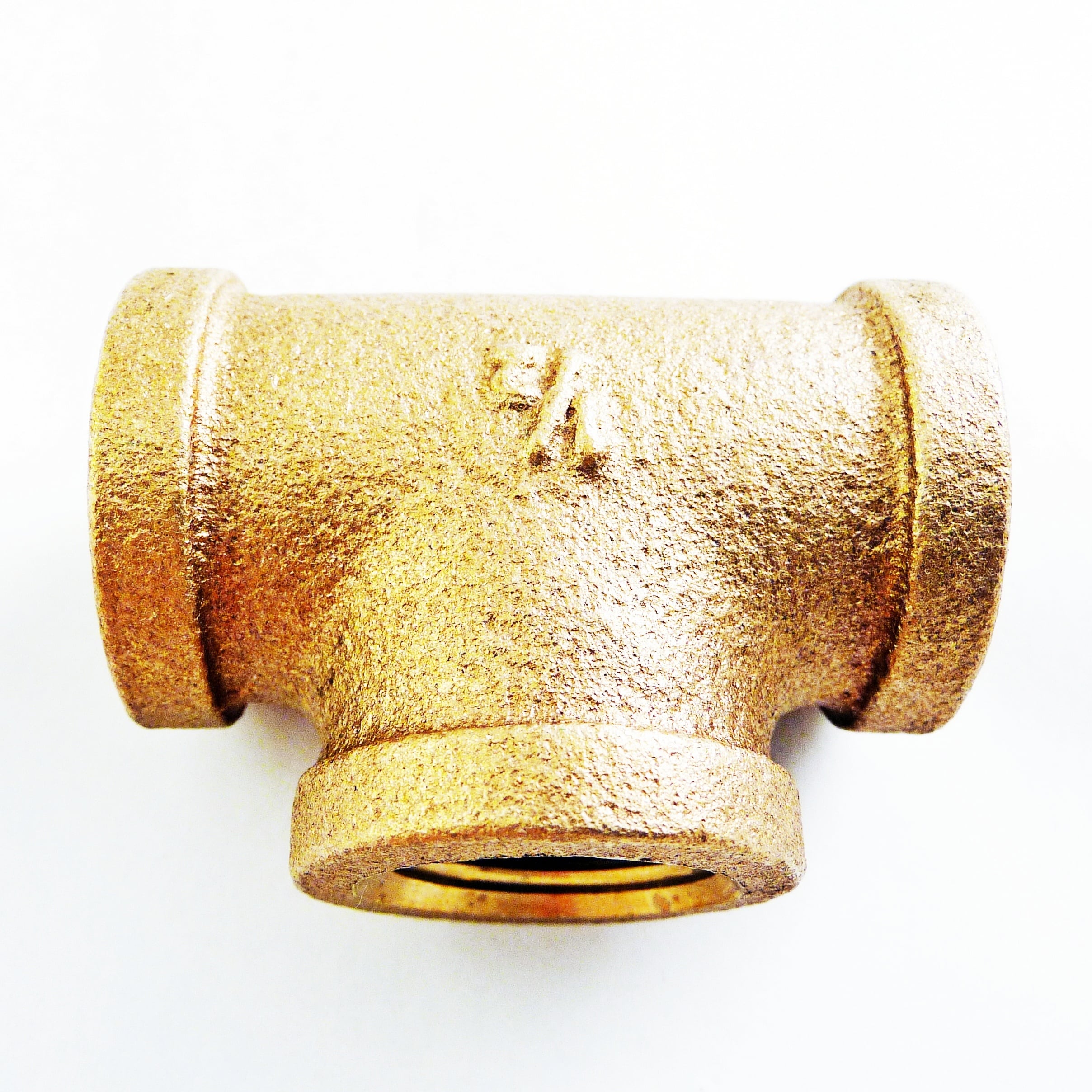

NPT Bronze 45 Degree Elbows	NPT Bronze 45 Degree Street Elbows	NPT Bronze Pipe Tees
