The Propex Heatsource range of propane fueled compact air heaters are designed to provide an efficient and economical source of heat, independent of the engine, for both vehicle and marine applications. Designed for ease of installation, they provide quiet, maintenance free operation and are easy to control. Note: when used with the 8007F digital thermostat, the vent only feature is not available.
Heat Output:
6,484 btu (****)
Fuel:
Propane Gas
Fuel Consumption:
14 hours/gallon (continuous running)
Air Throughput:
60 CFM
Voltage:
12 volt (24 volt available)
Power Consumption (12v):
1.4 amps
Dimensions:
L 12.6" x W 6.8" x H 4"
(****) note rating is based on butane, Propex does not provide a rated output on propane.

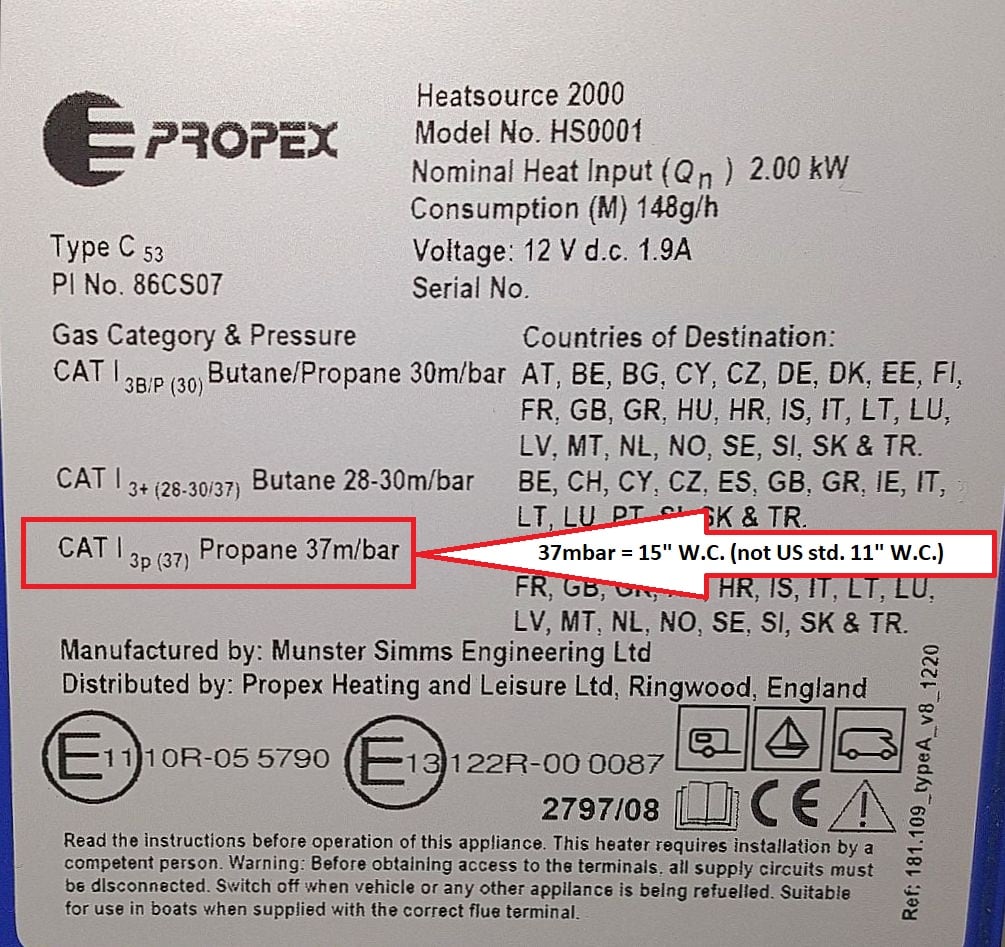

NOTE: PROPER PROPANE FUEL PRESSURE FOR MOST RELIABLE OPERATION IS 37mbar (15" W.C.) THIS IS SLIGHTLY HIGHER THAN THE US STD. PRESSURE OF 11" W.C.
CUSTOM CALIBRATED REGULATORS ARE AVAILABLE UPON REQUEST.

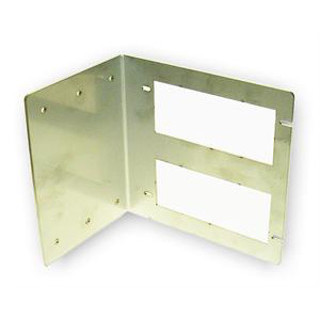

Mounting brackets sold separately.
Order PRO-700 for marine wall mount or PRO-188 for RV "through the floor" mounting. The HS2000 Uses 22mm Exhaust and Combustion Intake Hose, and 60mm Hot Air Ducting.
Note:
The propane inlet fitting has been converted to 3/8" SAE (flare,)
to reduce unnecessary fittings, eliminate metric adapters,
and to be USCG/ABYC compliant.
The OEM compression gas fitting is not marine approved
per ABYC A-1.9.4.
THIS APPLIANCE REQUIRES A LOW PRESSURE, REGULATED FUEL SUPPLY.
