The Propex Heatsource HS2211 heater is an automatic thermostatically controlled blown air heating system fuelled by propane/ butane gas.
The Propex Heatsource HS2211 heater is designed for mounting the unit underneath the vehicle; various bracket fixings allow different positions and orientations for mounting, increasing fitting options under floors or up between chassis rails

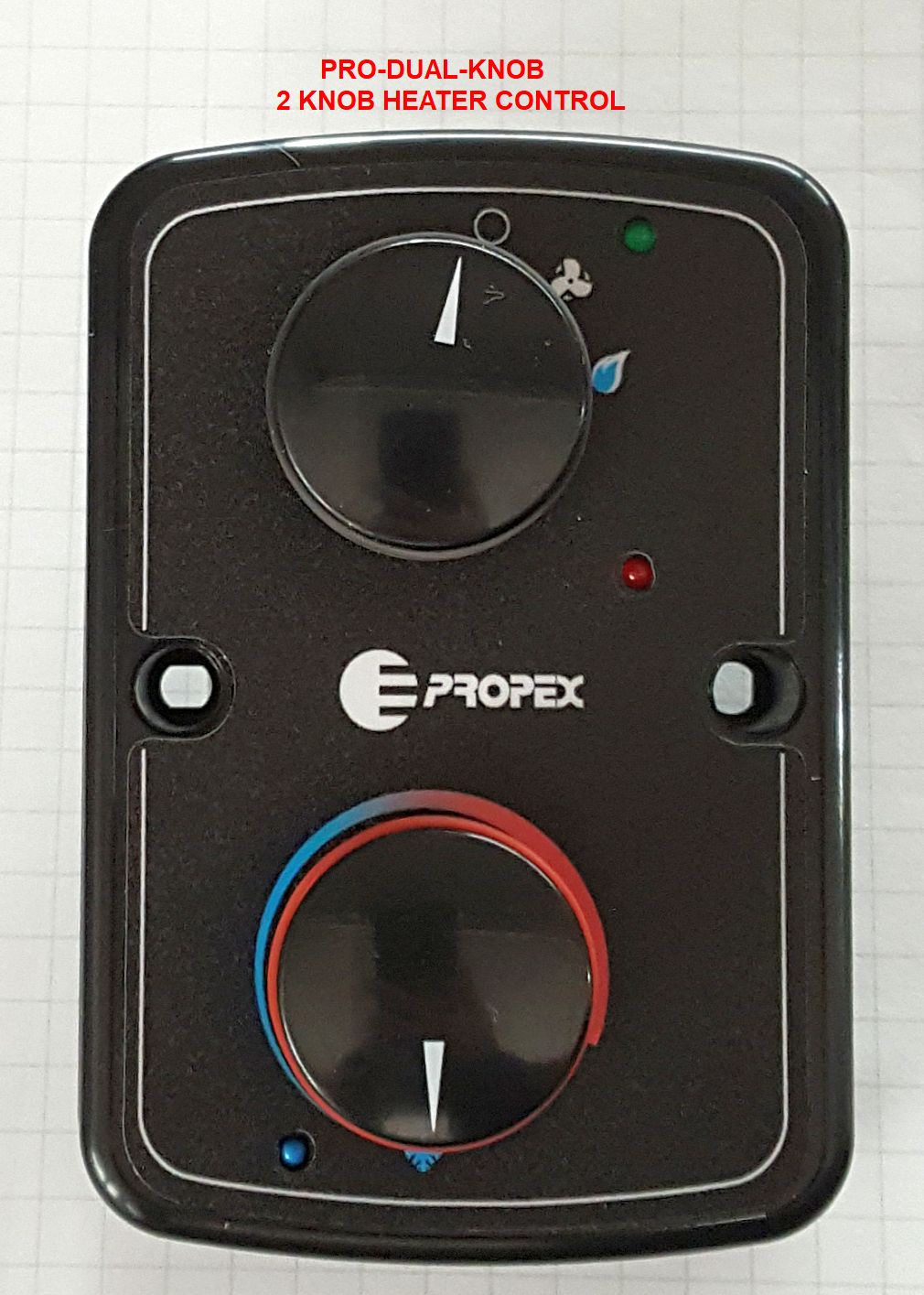

Simple intuitive controls gives easy heater control and a constant heater feedback loop enable quick and easy system diagnose.
Heat Output:
6,824 btu (****)
Fuel:
Propane Gas
Fuel Consumption:
14 hours/gallon (continuous running)
Air Outlet Diameter:
60mm
Voltage:
12 volt (24 volt available)
Power Consumption (12v):
1.7 amps
Dimensions:
L 16.93" x W 6.18"" x H 9.06"
(****) note rating is based on butane, Propex does not provide a rated output on propane.
NOTE: PROPER PROPANE FUEL PRESSURE FOR MOST RELIABLE OPERATION IS 37mbar (15" W.C.) THIS IS SLIGHTLY HIGHER THAN THE US STD. PRESSURE OF 11" W.C.
CUSTOM CALIBRATED REGULATORS ARE AVAILABLE UPON REQUEST.
Note:
The propane inlet fitting has been converted to 3/8" SAE (flare,)
to reduce unnecessary fittings, eliminate metric adapters,
and to be USCG/ABYC compliant.
The OEM compression gas fitting is not marine approved
per ABYC A-1.9.4.
THIS APPLIANCE REQUIRES A LOW PRESSURE, REGULATED FUEL SUPPLY.
You will need to add some of the products below for a complete install kit. Contact us if you need help designing a system.
