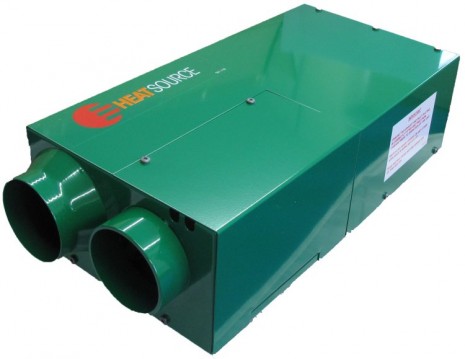

The Propex Heatsource range of propane fuelled compact air heaters are designed to provide an efficient and economical source of heat, independent of the engine, for both vehicle and marine applications. Designed for ease of installation, they provide quiet, maintenance free operation and are easy to control. Note: when used with the 8007F digital thermostat, the vent only feature is not available.
Heat Output:
9,556 btu (****)
Fuel:
low pressure Propane Gas,
Fuel Consumption:
10 hours/gallon (continuous running)
Air Throughput:
85 CFM
Voltage:
12 volt (24 volt available)
Power Consumption (12v):
1.9 amps
Dimensions:
L 16.4" x W 8.3" x H 4.8"
(****) note rating is based on butane, Propex does not provide a rated output on propane.
NOTE: PROPER PROPANE FUEL PRESSURE FOR MOST RELIABLE OPERATION IS 37mbar (15" W.C.)
THIS IS SLIGHTLY HIGHER THAN THE US STD. PRESSURE OF 11" W.C.
CUSTOM CALIBRATED REGULATORS ARE AVAILABLE UPON REQUEST.
Mounting brackets sold separately.
Order PRO-701 for marine wall mount or PRO-188 for RV "through the floor" mounting. The HS2800 Uses 1" Exhaust Tubing, 1" Combustion Intake Hose and 3" (75mm) Hot Air Ducting.
Note:
The propane inlet fitting has been converted to 3/8" SAE (flare,)
to reduce unnecessary fittings, eliminate metric adapters,
and to be USCG/ABYC compliant.
The OEM compression gas fitting is not marine approved
per ABYC A-1.9.4.
THIS APPLIANCE REQUIRES A LOW PRESSURE, REGULATED FUEL SUPPLY.
You will need to add some of the products below for a complete install kit. Contact us if you need help designing a system.
