A2720602 Truflow Classic 6 6-Loop 1-1/4" Stainless Steel Radiant Heat Manifold Assembly w/ Flow Meter by Uponor (Wirsbo)
Note: Image is of the 5-Loop A2700502 Manifold.
The Stainless-steel Manifold Assembly with flow meter comes fully assembled and ready for installation. Use the included flow meters located on the supply manifold to balance the loops across the manifold. The return manifold comes equipped with isolation valves for easy loop isolation. For multiple zoning on the manifold, the black caps are removed and replaced with Uponor Thermal Actuators. The manifold body ends have R32 union connections and the loop outlets have R20 male threads.

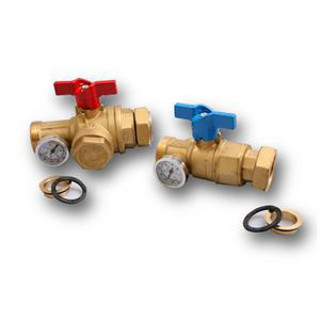

The included manifold supply and return ball valves come with an R32 x 1" NPT connection.
Features:
1" and 1-1/4" manifold offering
Competitively priced metal alternative
Corrosion-resistant, stainless-steel barrel
NPT-threaded ball valve for easy, cost-effective transition
Balancing and isolation valves for complete loop isolation
Compatible with all glycols used in radiant heating and cooling systems
Integrated, full-port ball valves with temperature gauges
Integrated flow meters for simple system balancing
Temperature/Pressure ratings:
68°F (20°C) at 145 psi
158°F (70°C) at 87.4 psi
194°F (90°C) at 43.8 psi
Pre-assembled and ready to install right out of the box

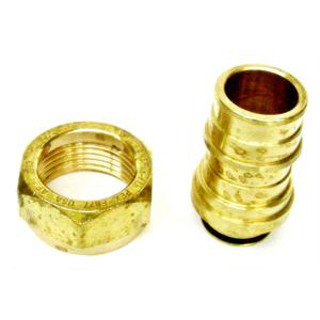

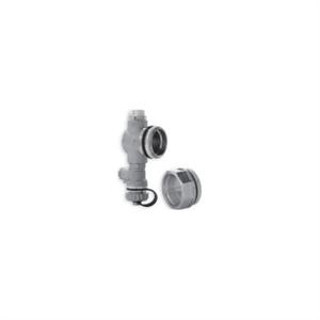

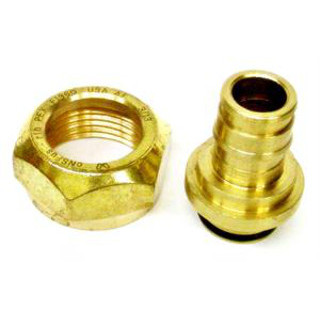

This manifold requires (12) Loop Fitting Assemblies:
